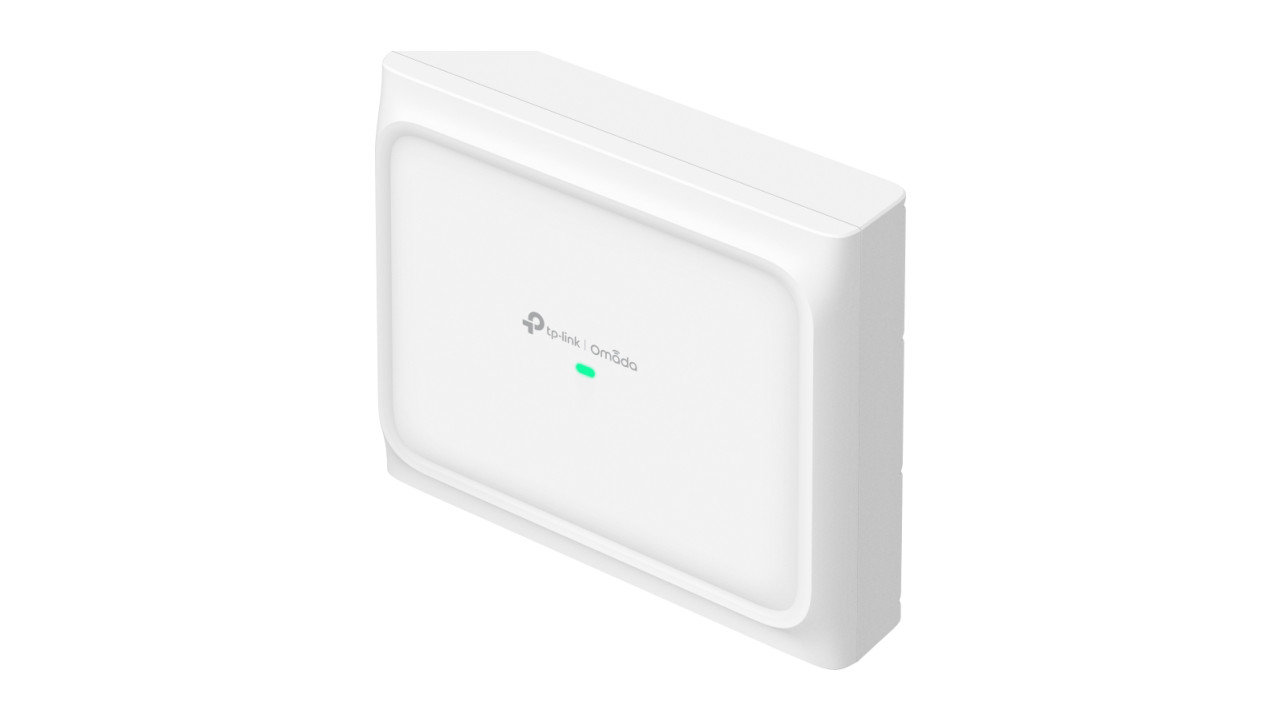

TP-Link Omada EAP772-Outdoor Wi-Fi 7 Access Point
An outdoor Wi-Fi 7 access point that shrugs off a downpour. BE11000 tri-band, IP68-sealed, ~300 m² of omnidirectional coverage, and one 2.5G PoE cable for power and data.
Powered over PoE - add the TL-POE260S injector (S$10/day) unless our PoE+ network stack is on your quote.
Add as many items as you need to one quote - no payment, no obligation. We'll reply with pricing, delivery and setup across Singapore.
What's included
- EAP772-Outdoor access point
- Waterproof cable kit
- Pole / wall mounting kits
- Installation guide
Specifications
- Wi-Fi standard
- Wi-Fi 7 (802.11be) tri-band BE11000
- Bands
- 5,765 @ 6 GHz + 2,882 @ 5 GHz + 688 Mbps @ 2.4 GHz
- Wi-Fi 7 features
- MLO, 4K-QAM, 320 MHz channels
- Port
- 1× 2.5G Ethernet with 802.3at PoE
- Weatherproofing
- IP68 - dustproof, submersible beyond 1.5 m
- Coverage
- ~300 m² omnidirectional (site-dependent)
- Antennas
- 6× internal high-gain
- Management
- Omada controller + mesh
Where it's used
- Outdoor festivals, fairs and street activations
- Marquee and tentage coverage on lawns and carparks
- Extending venue WiFi to an outdoor annex
- Dense crowds that need real throughput in open air
Wi-Fi 7 coverage that lives outside
Indoor access points don't survive a Singapore downpour, and borrowing coverage through a tent wall rarely reaches the far tables. The EAP772-Outdoor is sealed against all of it, an IP68-rated tri-band Wi-Fi 7 access point that covers around 300 m² of open-air space with the same MLO and 4K-QAM performance you'd get indoors, across all three bands including 6 GHz.

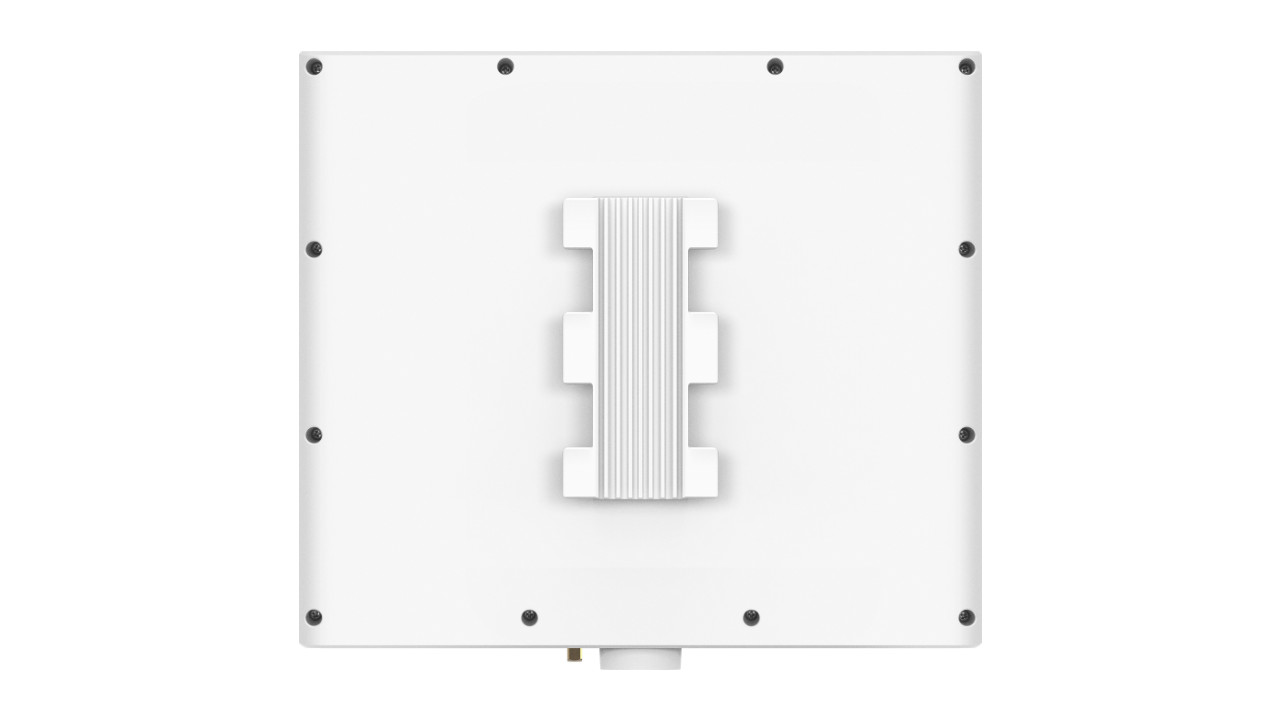

Mount it to a pole, truss or wall with the included kits and it holds up to rain, dust and heat for the length of your event.
One cable for power and data

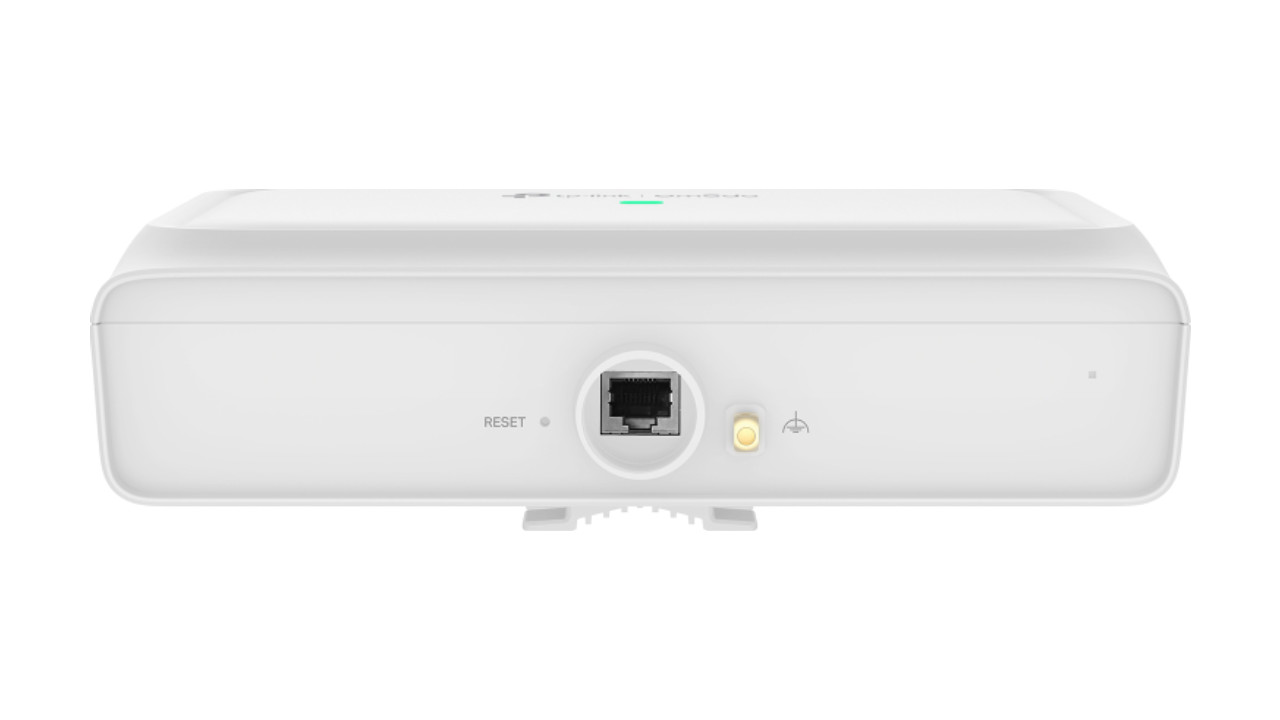

The single 2.5G Ethernet port carries data and 802.3at PoE power on the same line, so you don't need a mains run at the mounting point. One cable, up to 100 m, does the lot. If our PoE+ network stack isn't on your quote, add the TL-POE260S injector to run it off any regular socket.
Frequently asked
Does it include an internet connection? No. An access point spreads a connection, it doesn't make one. Feed it from the venue's wired line, or pair it with the 5G NX500 or 4G+ MR500 when there's no line to tap.
How is it powered? Over the Ethernet cable, PoE. Rent it with our network stack and the PoE+ switch handles power; on its own, the S$10/day injector does.
Will it survive heavy rain? Yes. IP68 means fully dustproof and submersible past 1.5 m, well beyond anything a storm throws at it.
How much area does it cover? Around 300 m² omnidirectionally in open air. Obstructions and crowd density pull that down. For bigger sites we mesh a few units together, so ask us to size it to your floor plan.
Pairs well with
Related gear
TP-Link TL-POE260S 2.5G PoE+ Injector
A 2.5G PoE+ injector that powers the EAP772-Outdoor over one Ethernet cable. 30 W, 802.3at/af, no configuration, just plug it into a wall socket.

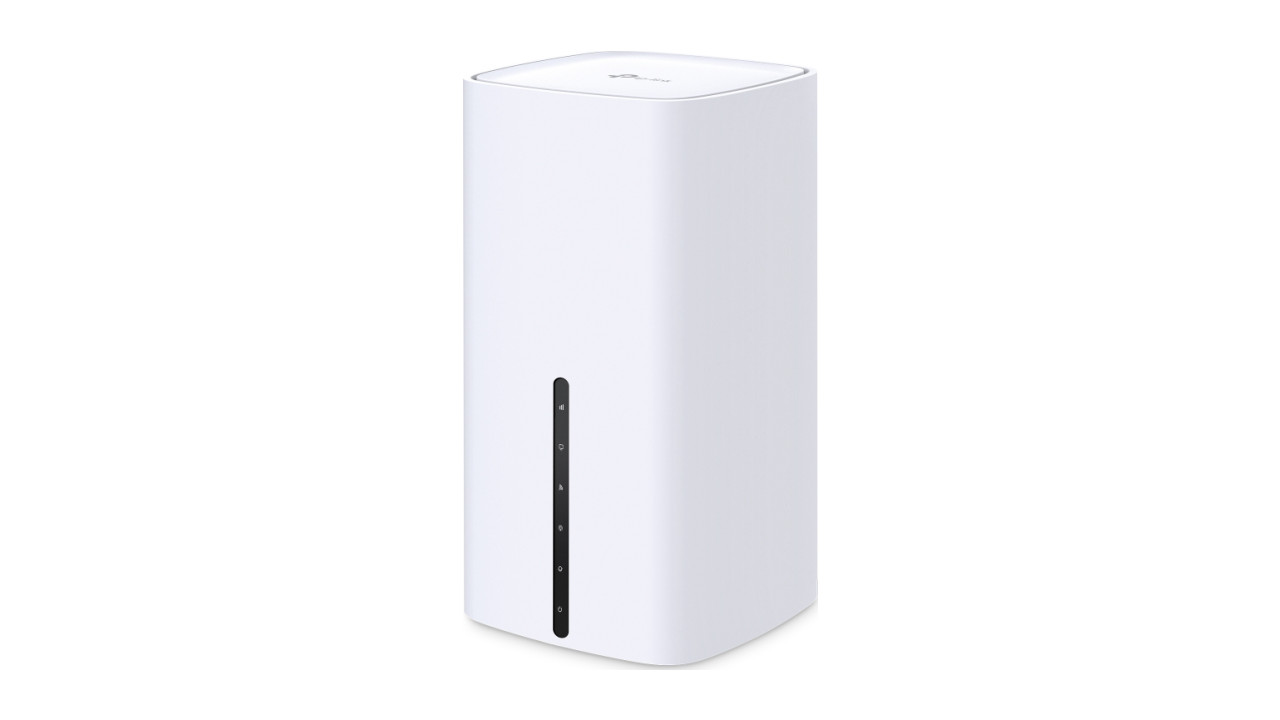

TP-Link Archer NX500 5G Router
